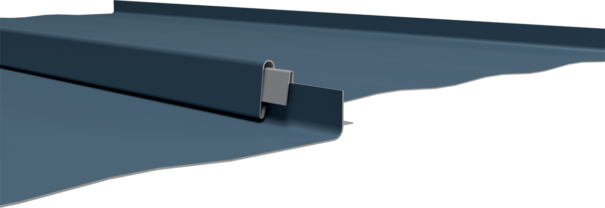

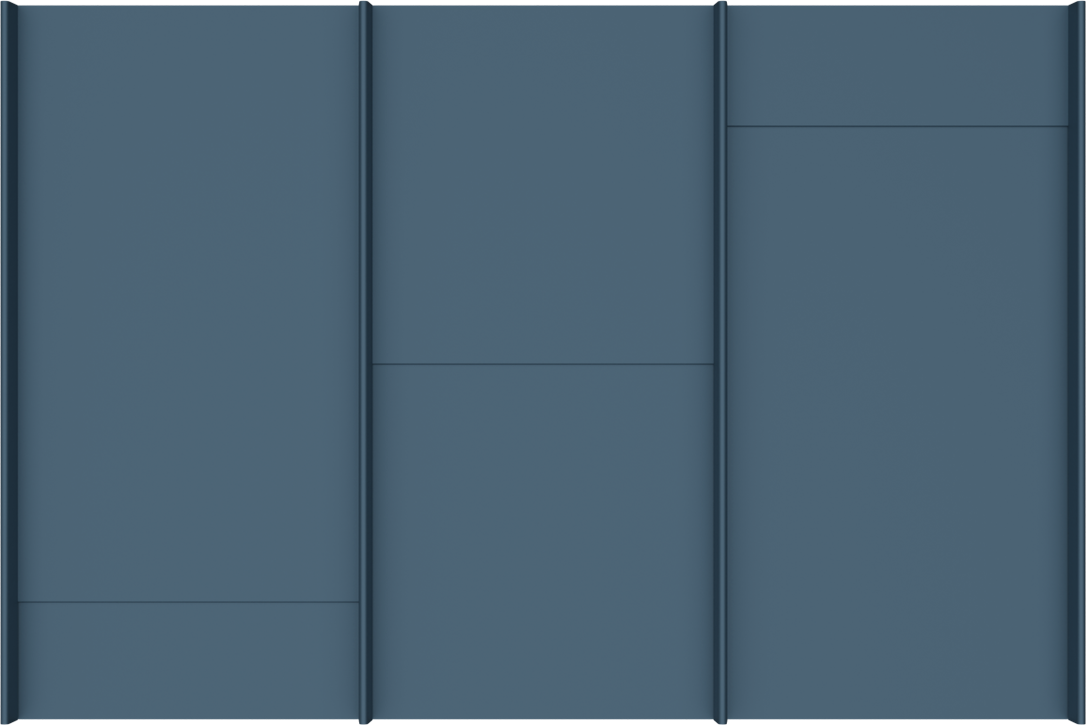

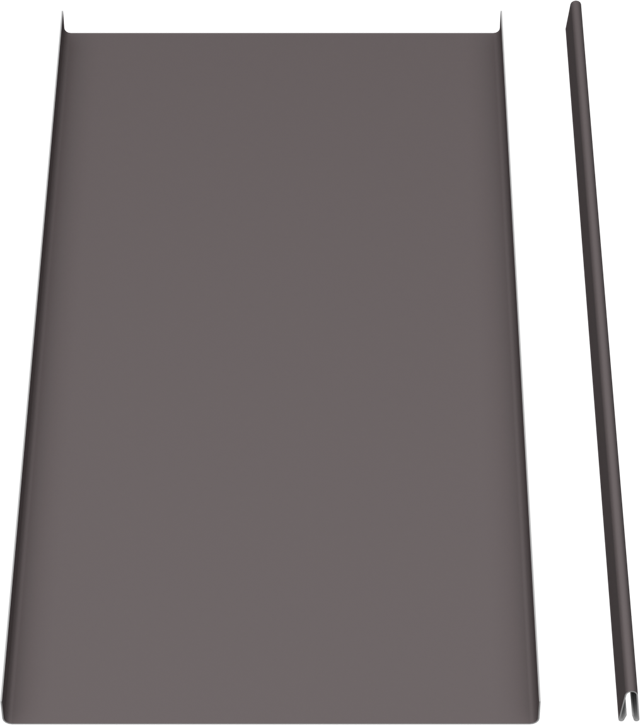

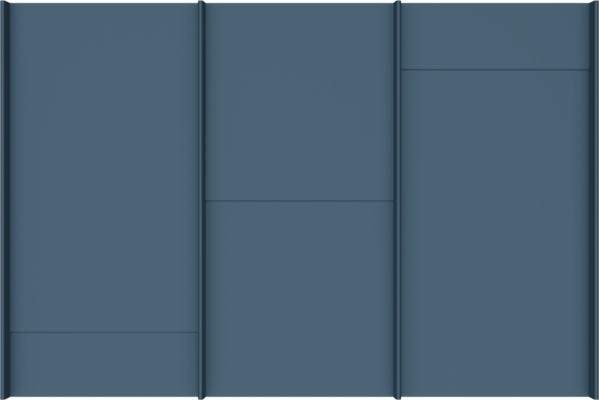

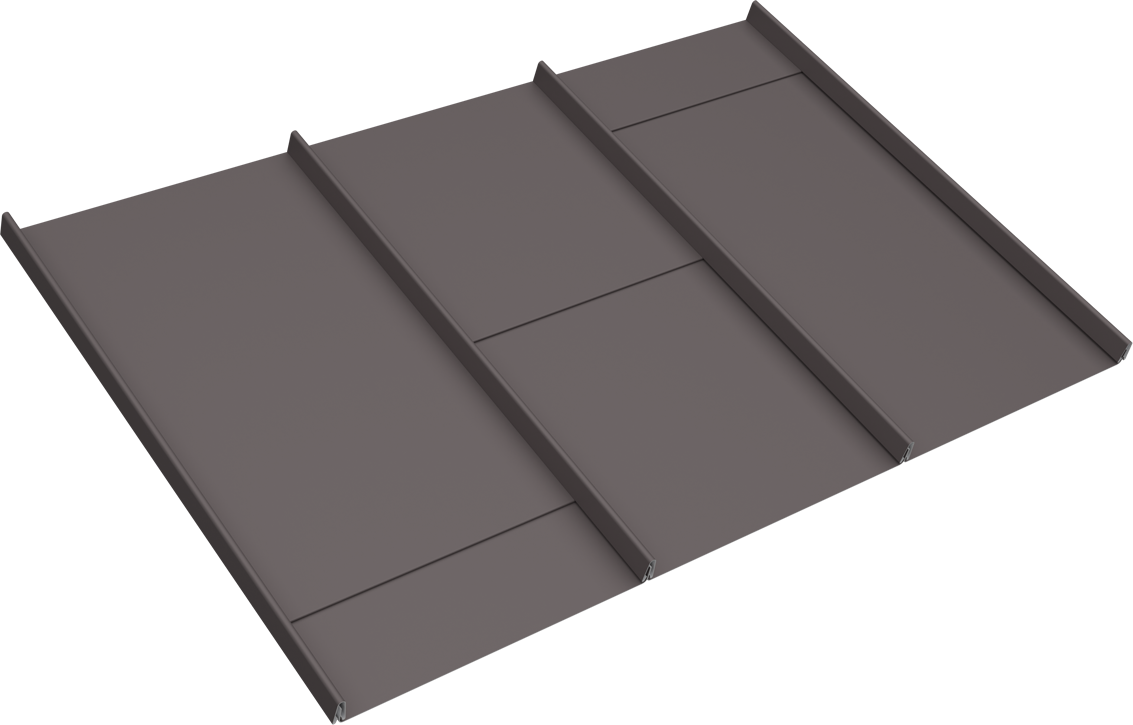

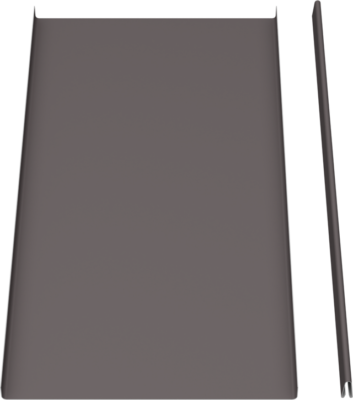

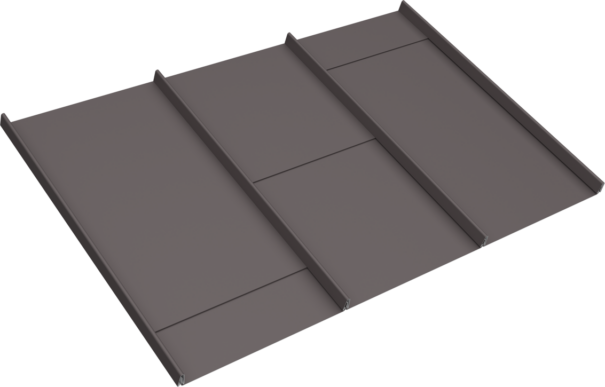

Select Seam® Shingle Cladding metal siding is a concealed fastener panel with a 12″ or 16″ coverage, 1″ rib height, and narrow batten attachment. Recommended for use in staggered 8′ lengths, the standing seam panel provides a modern shingle appearance. It is suitable for commercial and architectural siding applications.
Product Information
Product Details
Documents & Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal siding
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″, 16″
- Metal Thickness (Gauge): 22
- Minimum Slope: N/A
- Orientation: Vertical
- Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Concealed Clip
- Performance Certification: ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration – with sealant),ER 309 Building Code Evaluation Report
- Panel Height: 1″
- Rib Style: Standing Seam Tile
- Primary Application: Commercial and Architectural Siding
- Standard Configuration: Flat
- Factory Applied Sealant: Yes

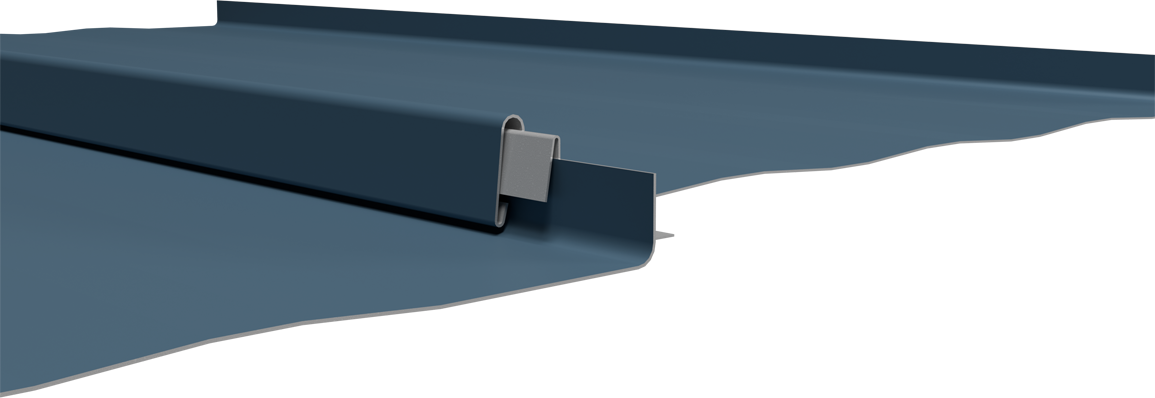

- Optional Configuration: Striated
- Available Panel Lengths: 5′-0″ to 40′-0″
- Other Options (inquire): Suggest 8′ for tiled appearance
- Panel Variations: N/A
Documents & Resources
Product Resources
- Select Seam® Shingle Cladding Product Sheet with Load Tables (pdf)
- Select Seam® Panel Dimensions (pdf)
- Select Seam® Wall Installation Guide (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Select Seam® Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal siding
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″, 16″
- Metal Thickness (Gauge): 22
- Minimum Slope: N/A
- Orientation: Vertical
- Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Concealed Clip
- Performance Certification: ASTM E1592 (Wind Uplift), ASTM E283 (Air Infiltration), ASTM E331 (Water Infiltration – with sealant),ER 309 Building Code Evaluation Report
- Panel Height: 1″
- Rib Style: Standing Seam Tile
- Primary Application: Commercial and Architectural Siding
- Standard Configuration: Flat
- Factory Applied Sealant: Yes
- Optional Configuration: Striated
- Available Panel Lengths: 5′-0″ to 40′-0″
- Other Options (inquire): Suggest 8′ for tiled appearance
- Panel Variations: N/A
Documents & Resources
Product Resources
- Select Seam® Shingle Cladding Product Sheet with Load Tables (pdf)
- Select Seam® Panel Dimensions (pdf)
- Select Seam® Wall Installation Guide (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Select Seam® Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0309)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf | rtf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM Data
Colors
Cool DURA TECH™ 5000 (22 & 24 Gauge)
Architectural standard colors in our premium 70% fluoropolymer (PVDF) paint system.
Cool DURA TECH™ mx (22 & 24 Gauge)
Metallic standard colors in our premium 70% fluoropolymer (PVDF) pearlescent paint system.
Cool DURA TECH™ nt (26 Gauge)
Standard commercial colors in our premium silicone-modified polyester (SMP) paint system.
No available colors in this category.
Premium Colors (24 & 26 Gauge)
Unpainted Products (26 - 20 Gauge)
Uncoated and Unpainted Products (22 Gauge)
No available colors in this category.
Specialty Finishes and Custom Colors
AEP Span’s non-standard Specialty Finishes Catalog showcases an extensive range of innovative and high-quality metal finishes to meet the most discerning architectural design needs. This catalog also provides detailed specifications and performance data to aid in the finish selection and specification process.
