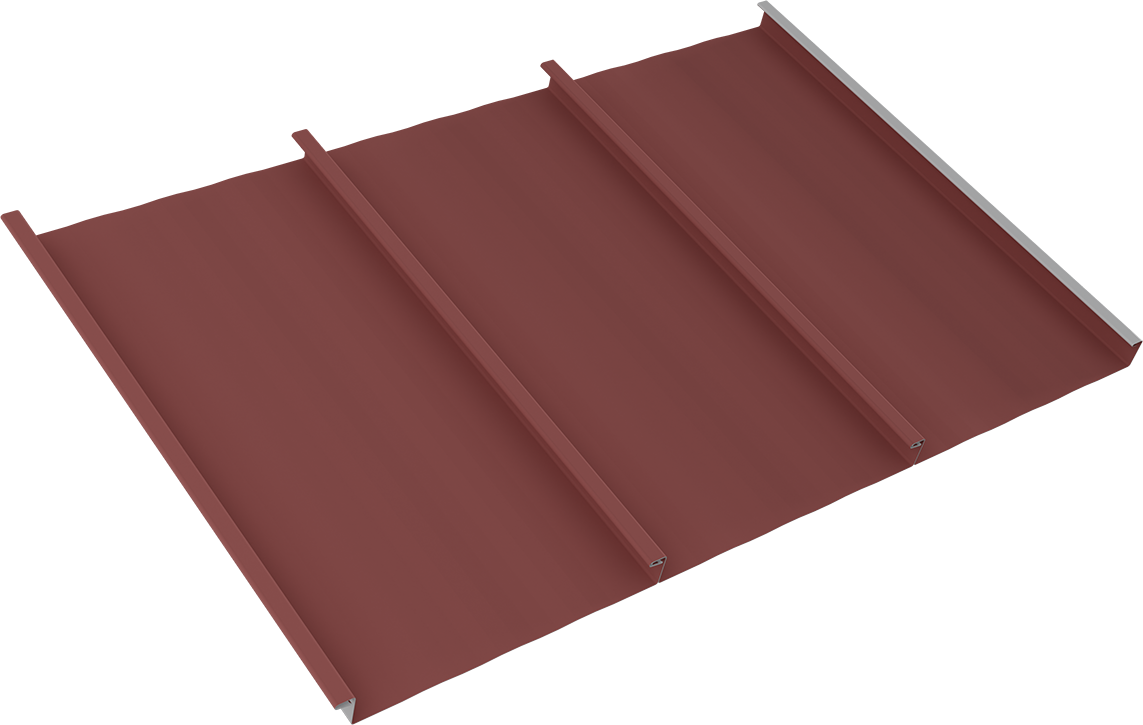

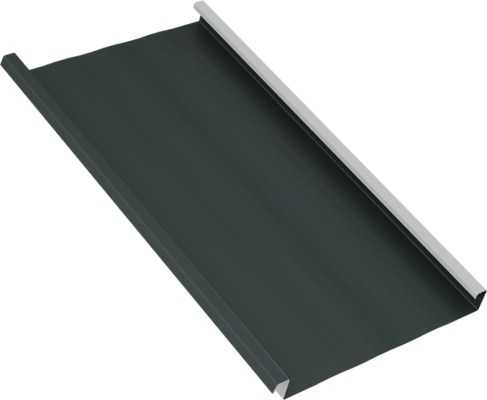

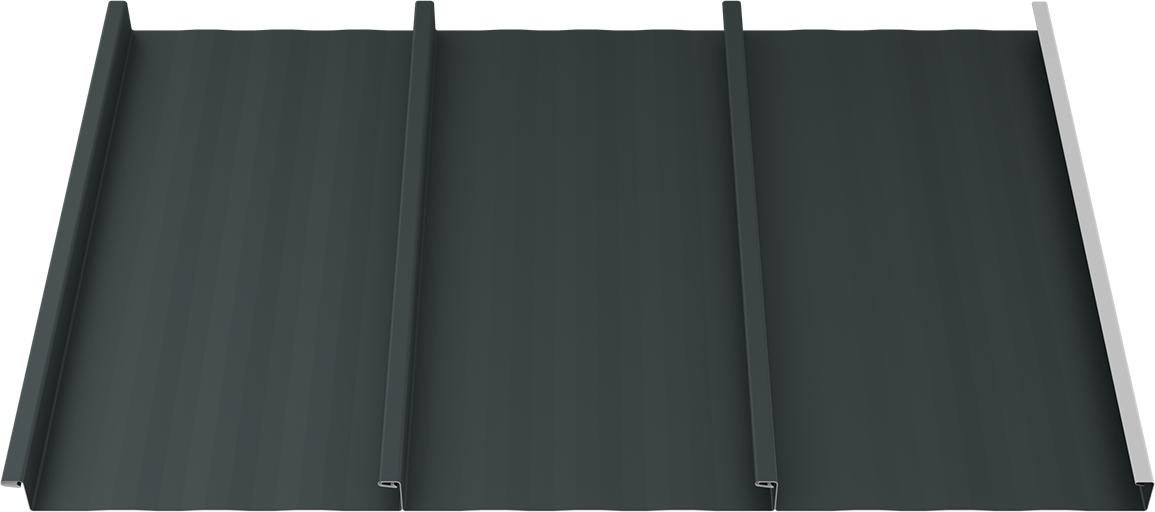

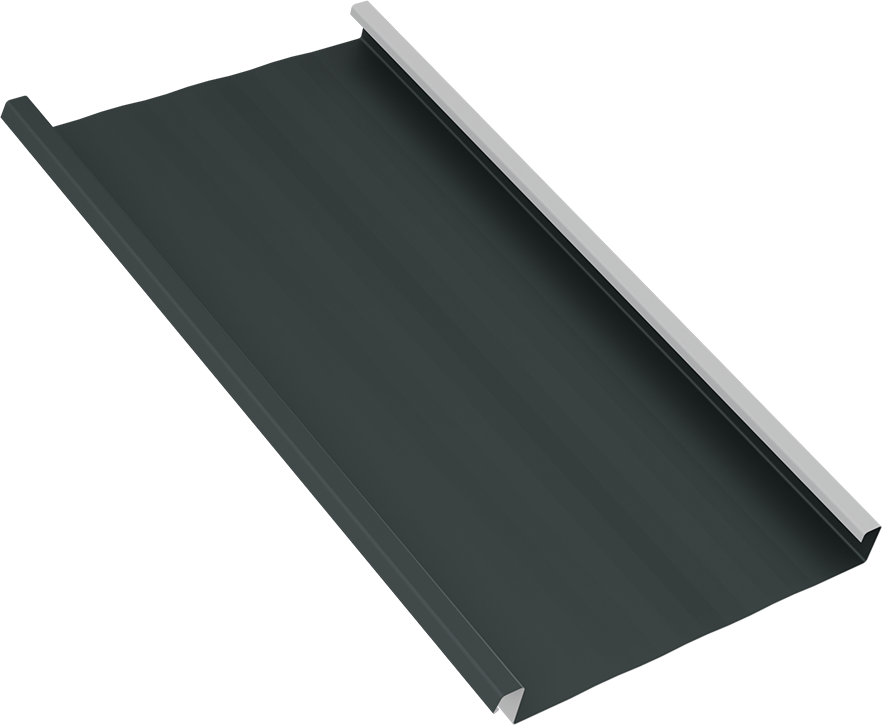

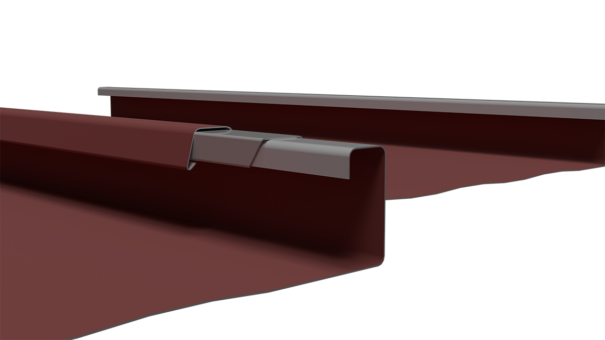

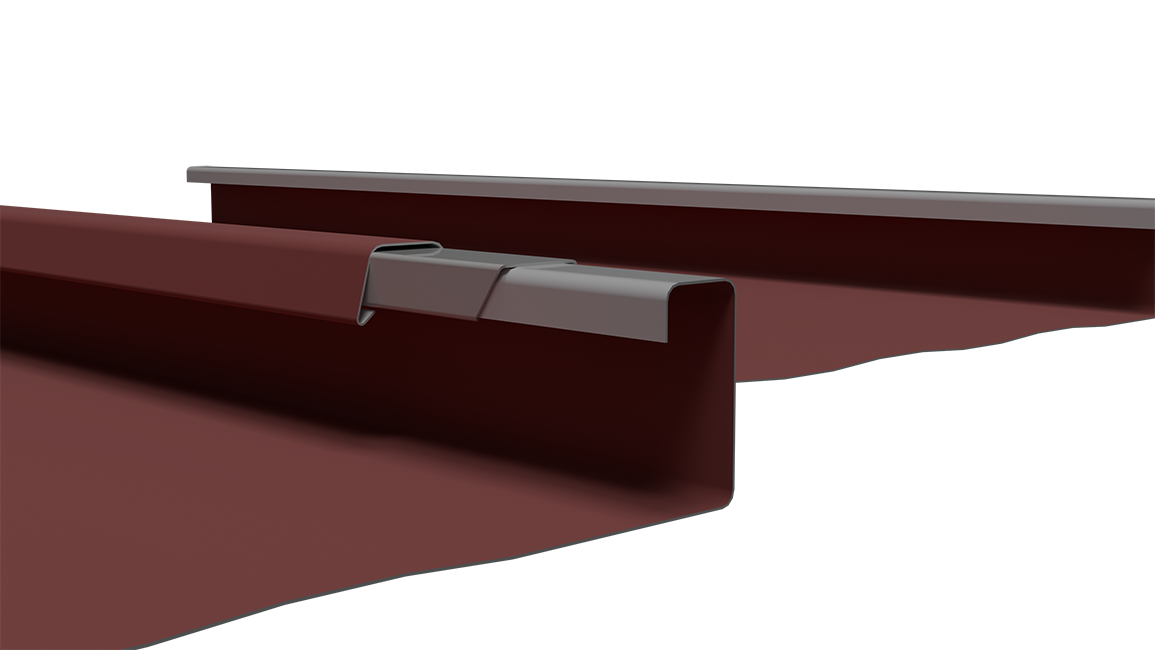

Span-Lok™ hp metal roofing is a high-performance concealed fastener roofing panel with a 2″ high rib. The weather-tight mechanically seamed panel is available in 12″ or 16″ coverages and is suitable for commercial and architectural roofing applications. On-site manufacturing is available for longer panel lengths over 45′. The panel is available as a flat pan or striated option for the 16″ size.
Product Information
Product Details
Documents & Resources
BIM/CAD Data
Warranty Information
Product Details
- Panel Type: Concealed fastener metal roofing (standing seam)
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″, 16″
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: 1⁄4:12
- Orientation: Vertical
- Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Mechanically Seamed with Concealed Clips
- Performance Certification: UL 580 (Class 90 Wind Uplift), UL 790 (Class A Fire Rated), ASTM E1592 (Wind Uplift), ASTM E1680 (Air infiltration), ASTM E1646 and E2140 (Water Infiltration), UL2218 (Class 4 Impact Resistance – Hail)
ER 309 Building Code Evaluation Report - Panel Height: 2″
- Rib Style: Standing Seam
- Primary Application: Commercial and Architectural Roofing
- Standard Configuration: Striated
- Factory Applied Sealant: Yes
- Optional Configuration: 2 Pencil Ribs, Flat Pan
- Available Panel Lengths: 6′-0″ to 45′-0″
- Other Options (inquire): Factory Notching, Factory Swaged, Aluminum .040″ substrate (16″ size only)
- Panel Variations: Curved or Radius, On site manufacturing for long-length
Documents & Resources
Product Resources
- Span-Lok™ Product Sheet with Load Tables (pdf)
- Span-Lok™ Panel Dimensions (pdf)
- Span-Lok™ Installation Guide (pdf)
- Span-Lok™ Installation Guide with Low Clip (pdf)
- Span-Lok™ Support Members (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Span-Lok™ Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0309)
- Span-Lok™ On-Site Roll Forming Product Sheet (pdf)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf)
- Commercial Color Chart (Dura Tech™ nt) (pdf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM/CAD Data
Warranty Information
- Finish Warranty PVDF Paint System – Dura Tech™ 5000 & Dura Tech™ mx Warranty (pdf)
- Corrosion Warranty – ZINCALUME® Plus Warranty (pdf)
- Full System Weathertight Warranty Available By Request (Sample Warranty | Inquire)
- Side Seam Weathertight Warranty Available By Request (Sample Warranty | Inquire)
Product Details
- Panel Type: Concealed fastener metal roofing (standing seam)
- Standard Base Metal: Zincalume® Steel (AZ50)
- Coverage: 12″, 16″
- Metal Thickness (Gauge): 24, 22
- Minimum Slope: 1⁄4:12
- Orientation: Vertical
- Paint System: Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
- Panel Attachment: Mechanically Seamed with Concealed Clips
- Performance Certification: UL 580 (Class 90 Wind Uplift), UL 790 (Class A Fire Rated), ASTM E1592 (Wind Uplift), ASTM E1680 (Air infiltration), ASTM E1646 and E2140 (Water Infiltration), UL2218 (Class 4 Impact Resistance – Hail)
ER 309 Building Code Evaluation Report - Panel Height: 2″
- Rib Style: Standing Seam
- Primary Application: Commercial and Architectural Roofing
- Standard Configuration: Striated
- Factory Applied Sealant: Yes
- Optional Configuration: 2 Pencil Ribs, Flat Pan
- Available Panel Lengths: 6′-0″ to 45′-0″
- Other Options (inquire): Factory Notching, Factory Swaged, Aluminum .040″ substrate (16″ size only)
- Panel Variations: Curved or Radius, On site manufacturing for long-length
Documents & Resources
Product Resources
- Span-Lok™ Product Sheet with Load Tables (pdf)
- Span-Lok™ Panel Dimensions (pdf)
- Span-Lok™ Installation Guide (pdf)
- Span-Lok™ Installation Guide with Low Clip (pdf)
- Span-Lok™ Support Members (pdf)
- Concealed Fastener Steel Roof and Wall Panel Structural Design Guide (pdf)
- Span-Lok™ Guide Specifications (pdf) (doc)
- Building Code Approval Report (Evaluation Report ER-0309)
- Span-Lok™ On-Site Roll Forming Product Sheet (pdf)
Product Option and Accessory Resources
Color Resources
- Architectural Color Chart (Dura Tech™ 5000/mx) (pdf)
- Commercial Color Chart (Dura Tech™ nt) (pdf)
- Color Performance Data (SRI and LRV Values) (pdf)
Sustainability Resources
BIM Data
Warranty Information
- Finish Warranty PVDF Paint System – Dura Tech™ 5000 & Dura Tech™ mx Warranty (pdf)
- Corrosion Warranty – ZINCALUME® Plus Warranty (pdf)
- Full System Weathertight Warranty Available By Request (Sample Warranty | Inquire)
- Side Seam Weathertight Warranty Available By Request (Sample Warranty | Inquire)
