AEP Span offers a range of cold-formed light-gauge purlins ideal for metal building, secondary framing, and solar mounting markets. Commonly used in conjunction with metal siding and roofing products, AEP Span makes it simple for customers to order all metal components at once.
Purlins
Purlin Configurations
AEP Span’s purlin offer includes a range of Cee, Zee, Channel, and Base Angel configuration in 10,12,14 and 16ga thicknesses. Purlins available from 6’ to 50’ in length.
To simply installation complexity, AEP Span offer a range of circle punch and slotted (oval) punch configurations, including placements on web and flange areas. AEP also offers a purlin clip, designed to simplify the attachment of purlin members.
Circle punch sizes:
- 7/16”
- 9/16”
- 11/16”
- 5/8”
- 1-1/16”
- 3/8”
Slotted (Oval) Punch sizes:
- 5/8” X 3/4”
- 5/8” X 11/32”
- 3/8” x 7/8”
Cee Purlins
CEE SECTION CAPABILITIES
Web Height (W): 4″ min – 20″ max
Flange Size (F): 2¼” min – 5″ max
Inside Bend Radius (R): 0.188″ typ.
Stiffener Lip Length (S): ⅝″ targeted (may vary)
Steel Thickness: 0.059″ (16ga) min – 0.128″ (10ga) max
Zee Purlins
ZEE SECTION CAPABILITIES
Web Height (W): 4″ min – 20″ max
Flange Size (F): 2¼″ min – 4½″ max
Inside Bend Radius (R): 0.188″ typ.
Stiffener Lip Length (S): ⅝″ targeted (may vary)
Steel Thickness: 0.059″ (16ga) min – 0.128″ (10ga) max
Channel Purlins
CHANNEL CAPABILITIES
Web Height (W): 4″ min – 20″ max
Inside Bend Radius (R): 0.188″ typ.
Flange Size (F): 1⅝″ min – 4½″ max
Steel Thickness: 0.059″ (16ga) min – 0.128″ (10ga) max
Base Angle Purlins
BASE ANGLE CAPABILITIES
Web Size (A): 2″ min – 5″ max
Leg Size (B): 2″ min – 5″ max
Inside Bend Radius (R): 0.188″ typ.
Steel Thickness: 0.059″ (16ga) min – 0.128″ (10ga) max

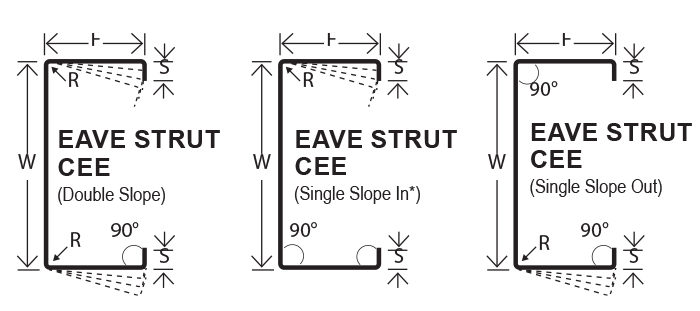

Eave Strut Cee Purlins
EAVE STRUT CEE CAPABILITIES
Slope: 1:12 – 4:12
Web Height (W): 8″ min – 14″ max
Flange Size (F): 2½″ min to 5″ max
Inside Bend Radius (R): 0.188″
Stiffener Lip Length (S): ⅝″ targeted (may vary)
Steel Thickness: 0.059″ (16ga) min – 0.128″ (10ga) max
*Note: On Single Slope In Eave Strut 8″ web not available in 3:12 or 4:12 slope.

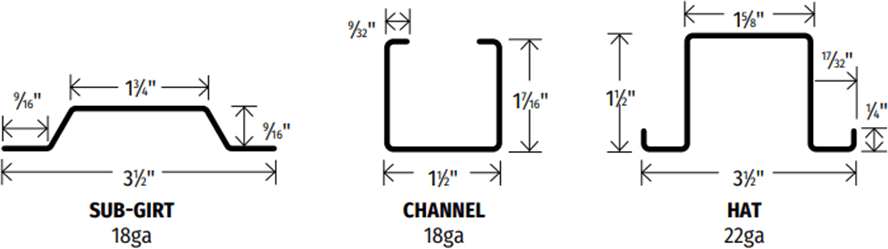

EZ-Form® Structural Sections
AEP Span offers EZ-Form structural sections, as an easy to install solution for light gauge framing needs. Available in a range of sub girt, channel, and hat configurations, EZ-Form is ideal for mansard, rainscreens, equipment screens and fascias.
Available in 20’ galvanized G60 steel sections, EZ-form® can be joined without a separate clip angle, increasing speed, and reducing cost of on-site fabrication. EZ-form structural sections are a cost-effective alternative to structural steel or wood framing.
